Harley-Davidson vikadiagnostiikka laitteisto, tällä setillä saat selville kaikki mahdolliset ja mahdottomat viat Harley-Davidson pyöristä, tällä pystyt myös ohjelmoimaan eri toimintoja pyörään,

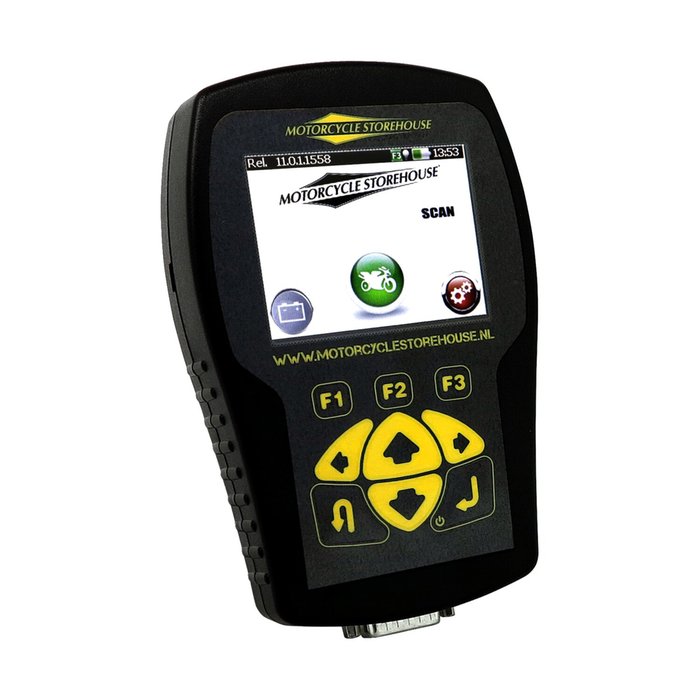

SCAN is a user friendly multiple language scanner with a virtual intuitive operating menu. It offers advanced diagnostics and reads & deletes trouble codes. Plugs into the standard OBD (On-Board-Diagnostics / data link) plug. SCAN is initially unlocked for H-D models only & includes H-D connector slave cables. From the included USB stick a program (Operating Suite) is installed onto your computer. Then SCAN is connected to your computer to install the latest H-D software. SCAN can be used for other motorcycle brands, but these must be unlocked first. Unlocking is done by purchasing a ’Software Token’. – Software Tokens? MCS MCS SCAN comes unlocked for H-D® models. Unlocking other motorcycle brands is done by purchasing a ’Software Token’, for unlimited use of the software. When you order a Token, you must provide MCS with the serial number of your SCAN, found on the rear side. When you connect your SCAN to a computer SCAN will auto-update.Software tokens are available in 2 variations: A) MCS 963474 = Activate one more motorcycle brand of choice. B) MCS 963475 = Activate multi-brand (activates all brands supported by SCAN). Note: Optional connector cables for the various motorcycle brands are sold separately. – Updates? MCS SCAN will receive free of charge future updates for the motorcycle brands you have unlocked. For receiving updates SCAN must be connected to a computer. – What’s included? SCAN comes complete with a sturdy carrying case, 560073 H-D 4-pin cable, 560096 H-D 6-pin cable, 948364 cable for 2021-up H-D models (incl. RH & RA Revolution engines) and the 560105 universal cable for 95-01 Touring with Magneti Marelli injection and some non-H-D models.
Diagnostic options:
– ABS pressure test
– ABS air purging test (bleeding air from ABS system)
– Immobilizer / Alarm configuration
– Temporary immobilizer unlocking
– TPS (Throttle Valve Sensor) adjustment
– Ignition test – Injection test – Dashboard
– Body Computer, ECU data display
– Radio check
– Handlebar commands check
– Read stored & current faults/trouble codes
– Delete trouble codes
– Data logger engine ECM parameters
– Zero setting self-adaptive parameters
– Live data display (RPM, battery Voltage, throttle angle, ect.)
– And much more System options:
– Screenshot option at any moment
– Selectable auto shut-off
– Build-in speaker
– Selectable languages: English, Italian, German, Portuguese, French, Spanish, Polish, Greek, Russian.
Stock replacement parts (as included in this 560041 SCAN kit): – 560103 Master cable – 560101 Four AC/DC power supply sockets – 560102 USB power cable – 560104 Battery power cable – 560073 H-D / Buell 4-pin – 560096 H-D 6-pin – 996456 H-D 6-pin Euro 5 2021-up models (incl. RH & RA Revolution engines) – 560105 Universal. Applications: Aprilia(2), Benelli, BMW(5), Cagiva(2), Harley-Davidson®(3), Honda(1), Hyosung, Kawasaki(5), Kymco, Malaguti(2), Mondial, Polaris(5), Suzuki(4), SYM, Triumph(5), Yamaha. (1)=Blinking code only and Hiss systems, (2)=excl. Marelli systems, (3)=Only Marelli systems, (4)=Only display code systems, (5)=Excl. CAN-bus systems.
